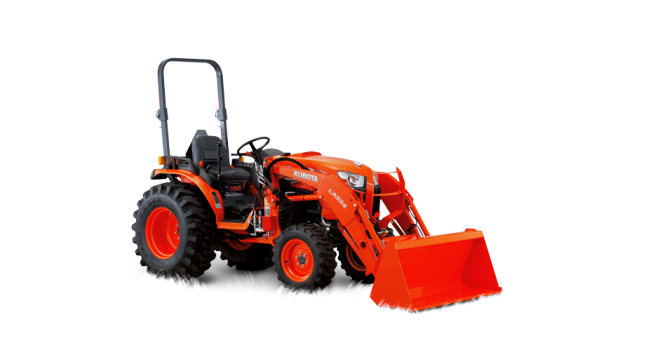

Kubota B3350SU
B3350SU
B Series
Cleaner Emission Diesel Engines
The B50 series diesel engines are built for greater power with cleaner emissions. The B3350's liquid-cooled E-TVCS (Emissions - Three Vortex Combustion System) engine delivers increased power and high torque for all the tractor strength you need, while significantly lowering emissions. The Diesel Particulate Filter (DPF) Muffler reduces emissions to make it compliant with the latest Tier 4 Final emission regulation
Kubota HST Transmission
Clutch-less for easy operation, our proven 3-range transmission provides optimal speeds to match your job. Choose Low range when you need extra power at low speed. Mid range for normal operations and High range for transporting place to place. In addition, the brake pedal is positioned on the left side.
3-Point Hitch
The capable PTO horsepower and a Powerful Category I 3-point hitch ensures easy attaching and detaching of implements, such as a rotary cutter, box blade and finishing mower. The intuitive clutch-less PTO engagement simplifies operation.
*Shown with optional telescopic lowerlink ends, stabilizer, ratchet-type lift rod.
Hydraulic Power Steering
The power steering is hydraulically controlled for comfortable and nimble handling to reduce fatigue during prolonged operation.
*B3350HSD model pictured
One Piece Metal Hood
The front grill and newly designed headlamps are now integrated with the hood for easier opening and closing and more convenient access to the engine.
*B3350HSD model pictured
Optional BH77 Backhoe with Reversible Seat
*B3350HSD model pictured
Optional Large Industrial Tires (Front: 25 x 8.5-14 Rear: 15-19.5
Cup Holder
Convenient cup holder to store beverages.
*B3350HSD model pictured
12V Outlet and Compartment
Convenient to charge electronic accessories.
Tool Box
Convenient to store tools, pins or personal items.
| Model | B3350SUHSD |
| Engine | |
| Type | E-TVCS, liquid cooled, 4-cylinder diesel |
| Make, Model | V1505-T-E4-D26-R |
| PTO horsepower HP (kW) | 27.0 (20.1) |
| Engine gross horsepower* HP (kW) | 33.0 (24.6) |
| Rated RPM rpm | 2500 |
| Bore and stroke in. (mm) | 3.1 × 3.1 (78 × 78.4) |
| Displacement cu. In. (cc) | 91.5 (1498) |
| Air cleaner | 4.5 inch Dual paper element |
| Lubrication | Forced lubrication |
| Cooling system | Pressurized radiator |
| Radiator fan | Radial air flow |
| Capacities | |
| Fuel tank gal ( ) | 7.3 (27.5) |
| Cooling system qts. ( ) | 4.5 (4.3) |
| Engine oil qts. ( ) | 5.1 (4.8) |
| Transmission case gal ( ) | 4.0 (15) |
| Drive train | |
| Clutch | N / A |
| Transmission | HST (3 ranges) |
| Differential lock | Standard |
| Final drive | Spur gear |
| Brake | Multi-plate wet disc |
| PTO | |
| Type | Independent |
| Rear rpm | 540 |
| Hydraulics | |
| Type | Open center |
| Pump | Dual pump |
| Total pump output gpm ( /min.) | 8.7 (33.1) |
| Hydraulic outlet | Rear outlet |
| 3-point hitch | Category I |
| Hydraulic control system | Quarter inching valve |
| Lift capacity at lift point lbs. (kg) | 2139 (970) |
| 24" behind LP lbs. (kg) | 1676 (760) |
| Steering | Hydraulic power steering |
| Standard tire size | |
| Front (Farm) | 7-12 |
| Rear (Farm) | 12.4 -16 |
| Traveling speeds (at rated engine rpm) | |
| Forward mph (km/h) | 0-14.3 (0-23.0) |
| Reverse mph (km/h) | 0-11.4 (0-18.4) |
| Dimensions | |
| Overall length (w/o 3P) in. (mm) | 101.2 (2570) |
| Overall width (min. tread) in. (mm) | 53.7 (1365) |
| Overall height in. (mm) | 78.5 (1995) |
| Wheelbase in. (mm) | 65.6 (1666) |
| Ground clearance in. (mm) | 14.6 (370) |
| Turning radius with brake feet (m) | 6.9 (2.1) |
| Weight lbs. (kg) | 1874 (850) |
| Other Features | Coil spring suspension seat,Drawbar, Tool box, 12V Power socket |
