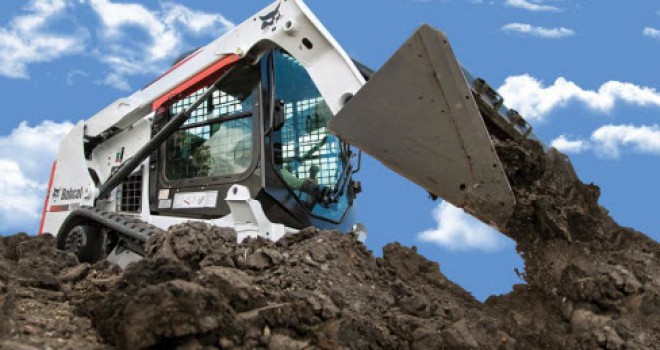

Bobcat T550
T550
Compact Track Loaders
The Bobcat® T550 is just 68 in. wide with a bucket, making it a good choice for backfilling and grading. The radius lift path provides greater maximum reach at mid-range heights such as dumping over a wall, backfilling or unloading flatbed trucks. The T550 is powered by a Tier 4 diesel engine.
| Model | Bobcat T550 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
66 hp
|
| Turbocharged Engine |
Optional
|
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
1,995 lb
|
| Operating Capacity (50% of Tip) |
2850 lb
|
| Tipping Load |
5700 lb
|
| Operating Weight |
7557 lb
|
| Travel Speed |
7.3 mph
|
| Travel Speed (2-speed option) |
n/a
|
| Ground Pressure (Rubber) | 4.9 psi |
| CAPACITIES | |
| Fuel Tank |
36.5 gal
|
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,500 psi
|
| Auxiliary Std Flow |
17.1 gal/min
|
| Auxiliary High Flow |
26.7 gal/min
|
| DIMENSION | |
| Length |
133 in
|
| Length without Attachment |
104.6 in
|
| Length with Standard Bucket |
133 in
|
| Width |
67 in
|
| Width (with bucket) |
68 in
|
| Height |
77.8 in
|
| Height with Operator Cab |
77.8 in
|
| Height to Bucket Hinge Pin |
114.5 in
|
| Reach @ Maximum Height |
19.3 in
|
| Turning Radius |
80 in
|
| Length of track on ground |
54.1 in
|
| Track Width |
12.6 in
|
| Track Width - Optional |
15.8 in
|
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | N/A |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Horn | Standard |
