Bobcat T630
T630
Compact Track Loaders

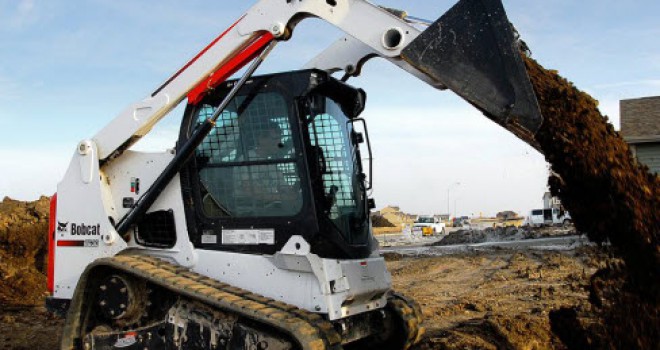

The Bobcat® T630 is a radius lift path model in the 600 frame size. This compact track loader gives you maximum forward reach at flatbed truck height for a variety of grading, digging, trenching and backfilling jobs. The T630 is a Tier 4 model.
| Model | Bobcat T630 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
74 hp
|
| Turbocharged Engine |
Optional
|
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
2,230 lb
|
| Operating Capacity (50% of Tip) |
3180 lb
|
| Tipping Load |
6371 lb
|
| Operating Weight |
8742 lb
|
| Travel Speed |
6.6 mph
|
| Travel Speed (2-speed option) |
10.7 mph
|
| Ground Pressure (Rubber) | 5.3 psi |
| CAPACITIES | |
| Fuel Tank |
27.5 gal
|
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,500 psi
|
| Auxiliary Std Flow |
23 gal/min
|
| Auxiliary High Flow |
30.5 gal/min
|
| DIMENSION | |
| Length |
108.4 in
|
| Length without Attachment |
108.4 in
|
| Length with Standard Bucket |
136.8 in
|
| Width |
72.9 in
|
| Width (with bucket) |
74 in
|
| Height |
81.3 in
|
| Height with Operator Cab |
81.3 in
|
| Height to Bucket Hinge Pin |
121 in
|
| Reach @ Maximum Height |
24.1 in
|
| Turning Radius |
88.1 in
|
| Length of track on ground |
59 in
|
| Track Width |
12.6 in
|
| Track Width - Optional |
17.7 in
|
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | Optional |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Horn | Standard |
