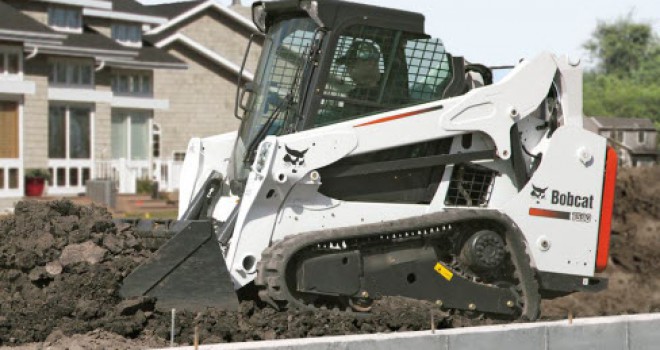

Bobcat T590
T590
Compact Track Loaders
With the highest lifting height in the 500 platform, the Bobcat® T590 compact track loader is ideal for loading and unloading tasks. The Tier 4, vertical lift T590 is ideal for tasks where space is limited but the need for maximum lift height is necessary.
| Model | Bobcat T590 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
66 hp
|
| Turbocharged Engine |
Optional
|
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
2,100 lb
|
| Operating Capacity (50% of Tip) |
3000 lb
|
| Tipping Load |
6000 lb
|
| Operating Weight | 7948 lb |
| Travel Speed |
7.3 mph
|
| Travel Speed (2-speed option) |
n/a
|
| Ground Pressure (Rubber) | 5.7 psi |
| CAPACITIES | |
| Fuel Tank | 24.8 gal |
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,500 psi
|
| Auxiliary Std Flow |
17.1 gal/min
|
| Auxiliary High Flow |
26.7 gal/min
|
| DIMENSION | |
| Length |
133 in
|
| Length without Attachment |
104.6 in
|
| Length with Standard Bucket |
133 in
|
| Width |
67.1 in
|
| Width (with bucket) |
68 in
|
| Height |
77.8 in
|
| Height with Operator Cab |
77.8 in
|
| Height to Bucket Hinge Pin |
119 in
|
| Reach @ Maximum Height |
34.9 in
|
| Turning Radius |
80 in
|
| Length of track on ground |
55.2 in
|
| Track Width |
12.6 in
|
| Track Width - Optional |
15.8 in
|
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | N/A |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Horn | Standard |
