Bobcat S590
S590
Skid-Steer Loaders

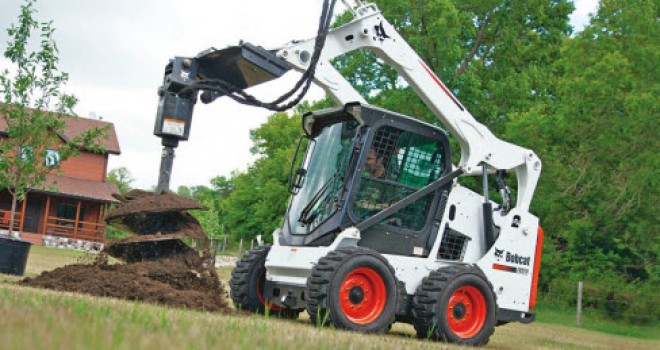

The Bobcat® S590 skid-steer loader is the highest-lifting, most powerful model in the popular 500 frame size. The vertical lift path provides more reach at full lift height than a radius lift path without sacrificing performance. The S590 features a Tier 4 diesel engine.
| Model | Bobcat S590 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
66 hp
|
| Turbocharged Engine | Optional |
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
2,100 lb
|
| Tipping Load |
4200 lb
|
| Operating Weight |
6593 lb
|
| Travel Speed |
7.4 mph
|
| Travel Speed (2-speed option) |
11 mph
|
| CAPACITIES | |
| Fuel Tank |
24.8 gal
|
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,000 psi
|
| Auxiliary Std Flow |
17.1 gal/min
|
| Auxiliary High Flow |
26.7 gal/min
|
| DIMENSION | |
| Length |
133 in
|
| Length without Attachment |
104.6 in
|
| Length with Standard Bucket |
133 in
|
| Width |
65.2 in
|
| Width (with bucket) |
68 in
|
| Height |
77.8 in
|
| Height with Operator Cab |
77.8 in
|
| Height to Bucket Hinge Pin |
119 in
|
| Reach @ Maximum Height |
32.6 in
|
| Turning Radius |
79.7 in
|
| Wheelbase |
42.6 in
|
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Sound Option | Optional |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Parking Brake | Standard |
| Radio | Optional |
| Rear Window | Standard |
| Top Window | Standard |
| Lift-Arm Support | Standard |
| Seat Belt | Standard |
| Suspension Seat | Optional |
| Two Speed Travel |
Optional |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | n/a |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Rear Hydraulics | Optional |
| Horn | Standard |
