Bobcat S70
S70
Skid-Steer Loaders

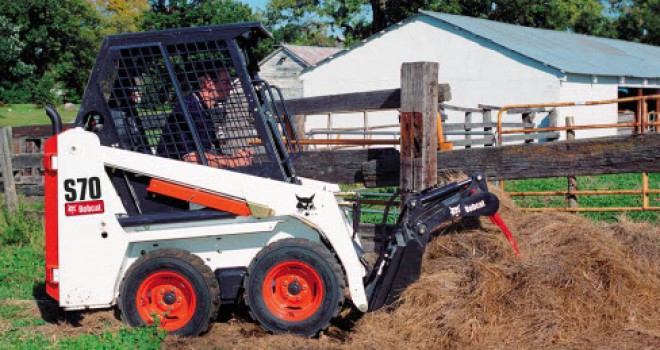

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It's the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.
| Model | Bobcat S70 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
23.5 hp
|
| Turbocharged Engine | N/A |
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
700 lb
|
| Tipping Load |
1512 lb
|
| Operating Weight |
2795 lb
|
| Travel Speed |
6.1 mph
|
| Travel Speed (2-speed option) | N/A |
| CAPACITIES | |
| Fuel Tank |
6.5 gal
|
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,000 psi
|
| Auxiliary Std Flow |
9.8 gal/min
|
| Auxiliary High Flow | n/a |
| DIMENSION | |
| Length |
75.8 in
|
| Length without Attachment |
75.8 in
|
| Length with Standard Bucket |
97.3 in
|
| Width |
35.5 in
|
| Width (with bucket) |
36 in
|
| Height |
71.4 in
|
| Height with Operator Cab |
71.4 in
|
| Height to Bucket Hinge Pin |
94.5 in
|
| Reach @ Maximum Height |
15.8 in
|
| Turning Radius |
58.7 in
|
| Wheelbase |
28.4 in
|
| FEATURES | |
| Joystick Control | N/A |
| Air Conditioning | N/A |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Sound Option | Optional |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Parking Brake | Standard |
| Radio | N/A |
| Rear Window | Standard |
| Top Window | |
| Lift-Arm Support | Standard |
| Seat Belt | Standard |
| Suspension Seat | Optional |
| Two Speed Travel |
N/A |
| Deluxe Instrumentation | N/A |
| Engine Shutdown | N/A |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | N/A |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | N/A |
| ACS (Switchable Controls) | N/A |
| Ride Control | N/A |
| Rear Hydraulics | N/A |
| Horn | Standard |
