Bobcat S740
S740
Skid-Steer Loaders

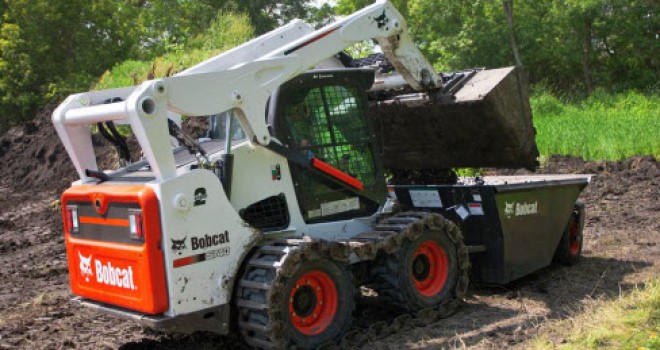

The Bobcat® S740 skid-steer loader provides powerful performance with Tier 4-compliant 3.4L engine and generous operating capacity. Combined with an impressive vertical lift path, it’s ideal for nearly any lifting or digging application.
| Model | Bobcat S740 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
49 hp
|
| Turbocharged Engine | Optional |
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
3,100 lb
|
| Tipping Load |
6200 lb
|
| Operating Weight |
8794 lb
|
| Travel Speed |
7.1 mph
|
| Travel Speed (2-speed option) |
12.3 mph
|
| CAPACITIES | |
| Fuel Tank |
23.9 gal
|
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,500 psi
|
| Auxiliary Std Flow |
23 gal/min
|
| Auxiliary High Flow |
30.5 gal/min
|
| DIMENSION | |
| Length |
141.6 in
|
| Length without Attachment |
114.3 in
|
| Length with Standard Bucket |
141.6 in
|
| Width |
72.1 in
|
| Width (with bucket) |
74 in
|
| Height |
81.3 in
|
| Height with Operator Cab |
81.3 in
|
| Height to Bucket Hinge Pin |
132 in
|
| Reach @ Maximum Height |
31.5 in
|
| Turning Radius |
85.8 in
|
| Wheelbase |
48.3 in
|
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Sound Option | Optional |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Parking Brake | Standard |
| Radio | Optional |
| Rear Window | Standard |
| Top Window | Standard |
| Lift-Arm Support | Standard |
| Seat Belt | Standard |
| Suspension Seat | Optional |
| Two Speed Travel | Optional |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Rear Hydraulics | Optional |
| Horn | Standard |
